    HOME > Business Dept.> Injection Molding Dept.









1. Features of high performance electric catapults    (five)

   a. High-speed, super high-pressure electric catapult can mold up to       0.3mm thickness

   b. Poor contraction and non-molding have been remarkably       improved compared with other facilities.

   c. Creating excellence in the reproducibility of injection molding

   d. Highly reliable mold safety device



2. Rotator-type double injection molder (two)



3. After dehumidifying and drying raw materials,    automatically provide to pipe lines



4. MAIN & SUB CONVEYER DUST COVER

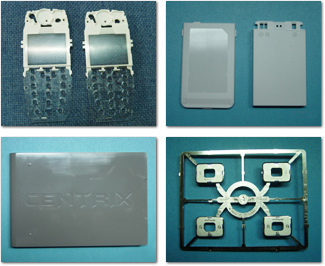

5. Range of application

   a. Components for optical instruments, interior and exterior parts for       mobile phones, gears

   b. Components for camcorders and digital cameras, connectors,

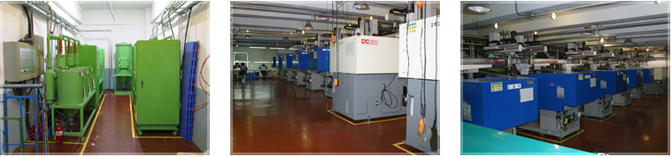

  List of molding equipment



NO DESCRIPTION MAKER MODEL, SPEC Q'TY USE REMARK
1

 INJECTION MOLDING MACHINE

  MITSUBISHI

  M-1600M

   1

  Medium injection parts

15.2*12.5(t/b)
2

 DOUBLE INJECTION MOLDING MACH.

  NISSEI

  DC120t-9A,￠32

   2

 keypad, knob type

Different materials and two-colored molding
3

 DOUBLE INJECTION MOLDING MACH.

  DONGSHUN

  120t,￠28

   1

 keypad, knob type

Different materials and two-colored molding
4

 ALL ELECTRIC INJECTION M/M

  MITSUBISHI

  100MEt-H150,￠28

   5

  Enpla thin wall molding

Speed of injection 300mm/SEC
5

 ROBOT

  YUDO

  YTWS-8OOF

   10

 Product takeout


6

 VACUUM DEHUMIDIFICATION DRYER

  HARUNA

  ECOMAK LS-100

   1

 Special vacuum and dehumidification

JAPAN Patent
7

 VACUUM DEHUMIDIFICATION DRYER

  HARUNA

  YTWS-9OOF

   2

  Vacuum, dehumidification and drying


8

 MOLD TEMPERATURE CONTROLLER

  HARUNA

  SP-600F

   2

  Control of molding temperature


9

 MOLD QUICK CHANGE UNIT

  MUNGJIN

  MACO GS-3

   5

  Exchange of automated molding


10

 COOLING LINE

  CHUNGWOO

  100 RT

   1

  Cooling


11

 MATERIAL FEEDING PIPE LINE

  CHUNGWOO

  SUS ￠38

   1

  Supply of raw materials


12

 MAIN CONVEYOR

  YUDO

  800*17000,600*6000

   2

  Transfer of products


13

 SLOPE CONVEYER

  YUDO

  SP300*3000

   5

  Transfer of products


14

 FLATE CONVEYER

  YUDO

  FT450*8000

   2

 Transfer of products


15

 LOW SPEED CRUSHER



  4.5 HP

   3

 Grinding


16

 AIR COMPRESSOR

  KUMWYON

  20 HP

   2

  Run of robot







  List of test equipment



NO DESCRIPTION MAKER MODEL, SPEC Q'TY USE REMARK
1

  Luminance colorimeter

 TOPCON

  BM-7

   1

  Measures brightness
of LGP


2

  Non-contact video measuring machine

 RATIONAL

  VMS-1510

   1

  Measures size of LGP


3

  COATING THICKNESS GAUGE

 ELEKTROPHYSIK

  Minitest 700

   1

 Measures thickness of film of paint

0-2000㎛
4

  ABRASION TESTER

 SUNGWON

  70-150mm

   1

  Tests abrasion of film
of paint

Non magnetic
5

  COLOR COMPARATOR

 DENSHOKU

  NR-1, 10mm￠

   1

  Decides color
difference


6

  DUPONT IMPACT TESTER

 DY PRECI.

  M201, 50-500mm

   1

 Impact test


7

  SURFACE ADHESION

 ELCOMETER

  F-106,

   1

  Tests coating adhesion


8

  MICROSCOPE

 PEAK(JP)

  FF-394,100X

   1

  Magnifier


9

  GLOSS METER

 SHEEN

  FF-394,100X

   1

  Measures gloss


10

  VISCOSITY
(FORD CUP)

 SHEEN

  NO-4,70-370cst

   1

 Measures viscosity


11

  Vibration Tester(DS)



  10 G

   1

 Test for durability.


12

  Drop Tester(DS)



  2 m

   1




13

  Humidity-Temp. Chamber



  - 30 ~ 150℃

   1







  TOTAL

   11
