    HOME > Business Dept.> Mold Manucture Dept.

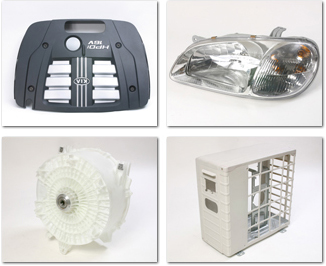

Handok’s mold business division supplies automobile parts, such as instrument panels and door trims, and parts for home appliances, such as the drums of washing machines, the grills of air-conditioners and the exteriors of monitors, to domestic and foreign customers. To meet the highest standards that our customers expect in terms of quality, the division has been continuously developing processing technologies and enhancing precision.

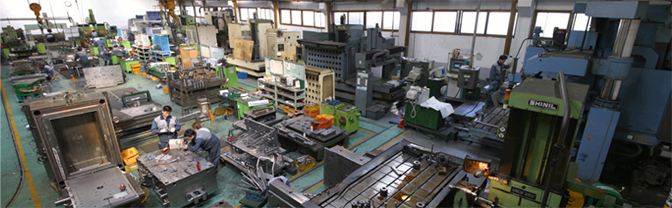

The mold production team of the company tries to carefully understand various problems which can take place in the process of injection molding through performing simulations jointly with the institute’s team of technicians and does its very best to improve reliability and productivity. Bearing in mind that technologies for mold production determine the quality of injection goods and their costs and become the basis for securing national competitiveness, all members of the team are doing their best to perform their duties with an attitude of master craftsmen.



The company will repay the trust and respect of our customers by establishing SIM (computer integrated manufacturing), introducing IMS (intelligent manufacturing system), observing QS9000 and ISO9000 quality-related regulations and securing competitiveness in international markets.




  List of mold equipments



NO DESCRIPTION MAKER MODEL Q'TY WORKING RANGE(mm) REMARK
1   CNC MILLING MACHINE   OKK   MHA-1250   1   2500*1250*1000
2

  CNC MILLING MACHINE

  OKK   OKK-800   1   1500*800*800
3

  CNC MILLING MACHINE

  MAKINO   HDNC-2213-A60   1   2200*1300*800 H/Z
4

  CNC MILLING MACHINE

  MAKINO   HNC-2213-A60   1   2200*1300*800 H/Z
5

  CNC MILLING MACHINE

  HWACHEON

  ECOMIL-85VH   2   2000*850*750
6

  CNC MILLING MACHINE

  MITSUBISHI   M-VS17A   1   2200*1700*1500
7

  CNC MILLING MACHINE

  MAKINO   V99L(高速加工機)   1   2000*1000*8000 18000RPM
8   CNC MILLING MACHINE

  HWACHEON

  SIRIUS-UL   1   1020*600*550 G/F
9

  CNC MILLING MACHINE

  MAKINO

  SNC / 106   1   1000*600*400 G/F
10

  MILLING MACHINE

  HWACHEON

  WMIT-1100   3   750*250*500
11

  GUN DRILLING MACHINE

  HANKUK   KHG-2000CNC   1   2000*1300*2020
12

  DIE SPOTTING PRESS MACHINE

  ABESEAKI   CDS-300TS-100   1   1600*1500*1600
13

  DIE SPOTTING PRESS MACHINE

  ASAI   DSP300M   1   3000*2000*2200
14

  NC EDM MACHINE

  DAEHAN   CNC1200   1   1200*600*600
15

  NC EDM MACHINE

  DAEHAN   CNC-900   1   900*600*400
16

  EDM MACHINE

  DUKWANG

  SUNEX-800CNC   1   900*500*350
17

  EDM MACHINE

  YUIL   YI-450M   1   450*350*300
18

  RADIAL DRILLING

  IKEDA

  RMA-2500   1   2000*2500*800
19   FORMING GRINDER   KUMYANG   D-550   1   350*150*160
20   PIN CUTTING GRINDING CUTTER   SONGLIM   C-40   1   400*250*250
21   LATHE   HWACHEON   860   2   370*1470
22   AIR COMPRESSOR   KUMWYON   KK-25.50HP   2
23   HOIST CRANE   BANDO      8   20ton, 15t, 10t, 5t
    TOTAL(計)   35
